Description

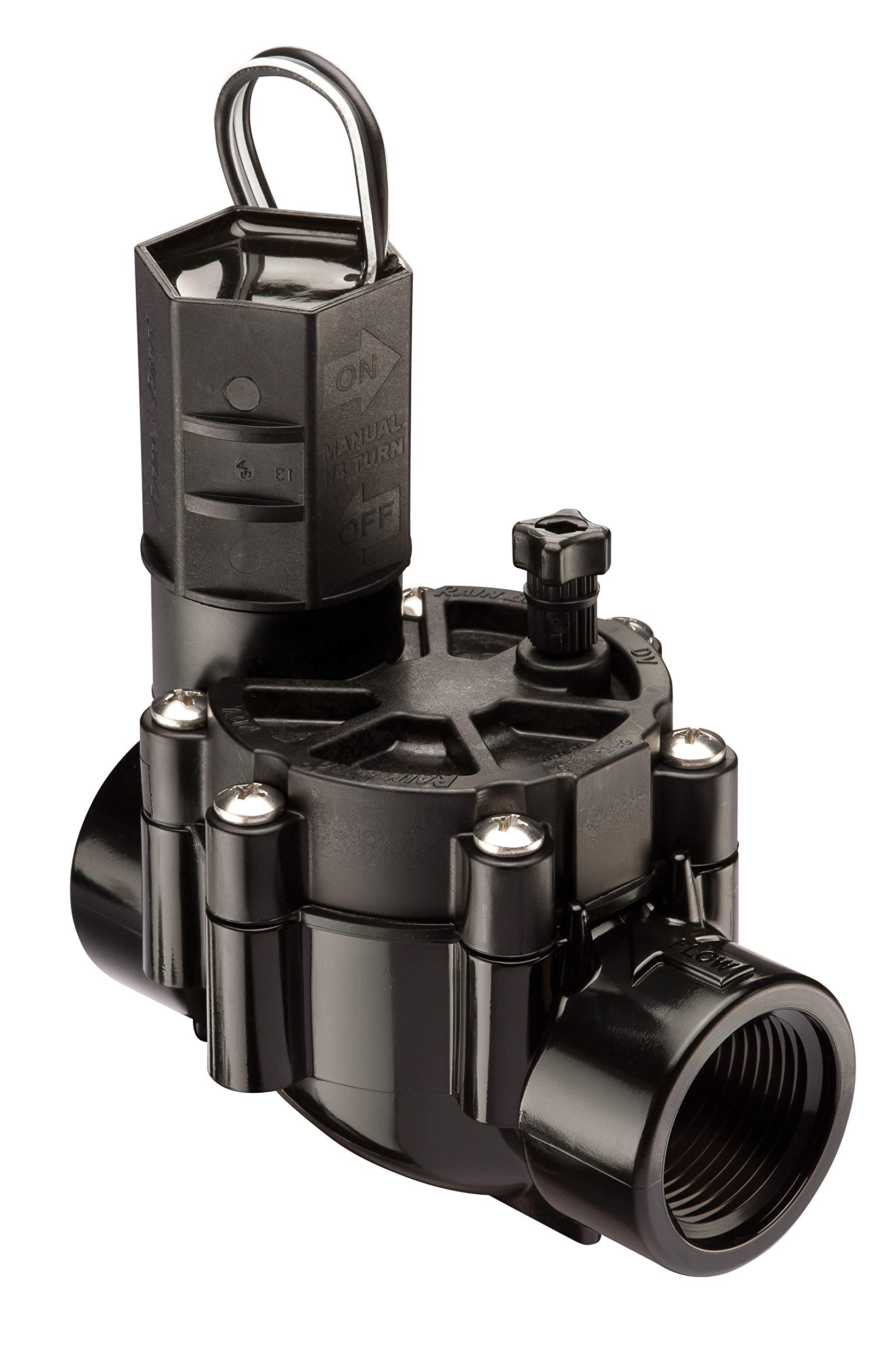

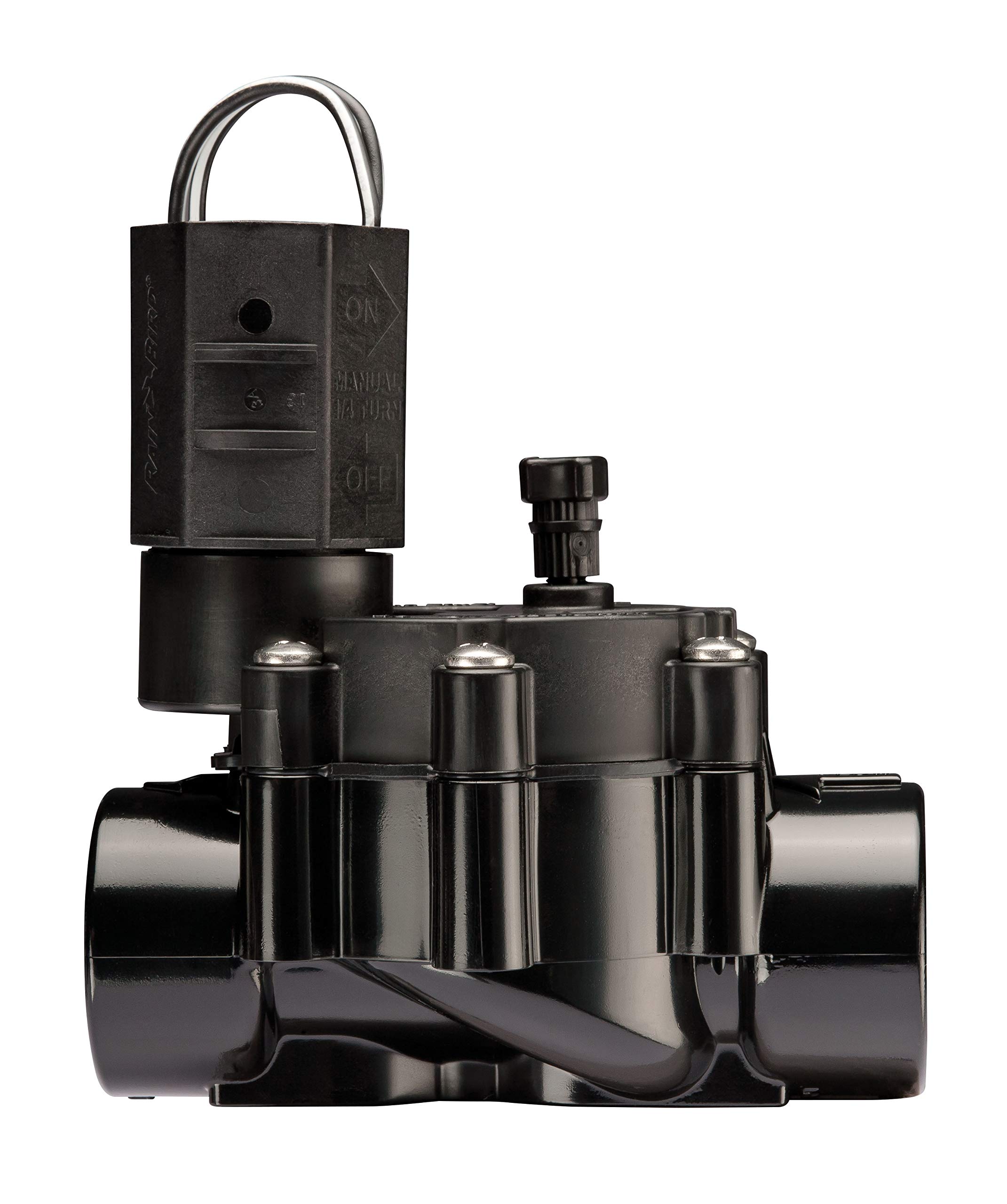

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 1 inch female threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5). Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve’s external bleed screw.
- Buna-N diaphragm offers superior performance in harsh water environments.
- Reliable, non-clogging design.
- Reverse Flow design reduces stress on diaphragm for dependable operation.
- In-line design minimizes pressure loss of dirt and debris during installation and system start-up.
- Operates automatically or manually with manual bleed screw.
- Works with any standard sprinkler timer.

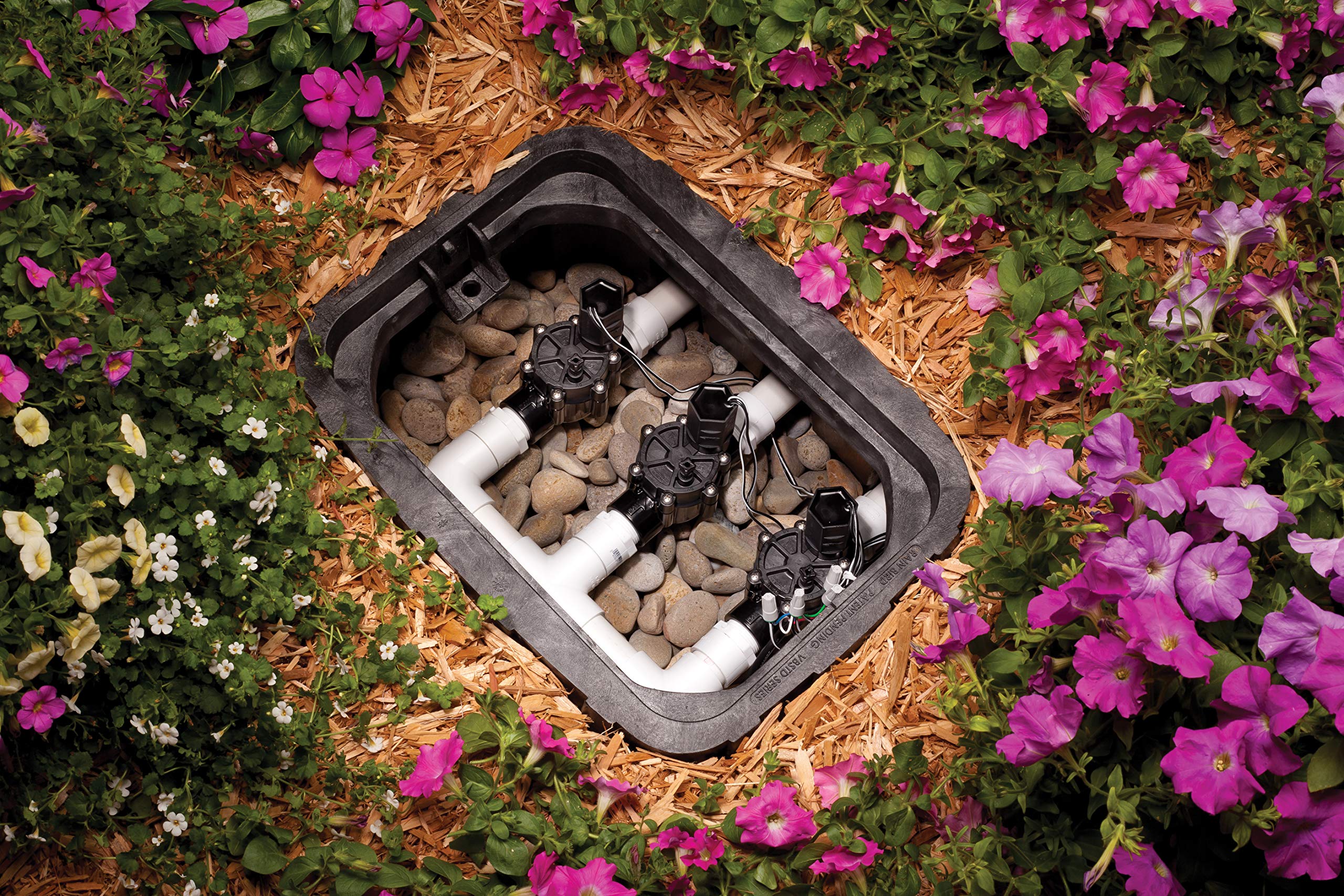

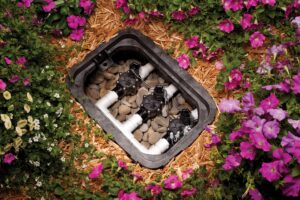

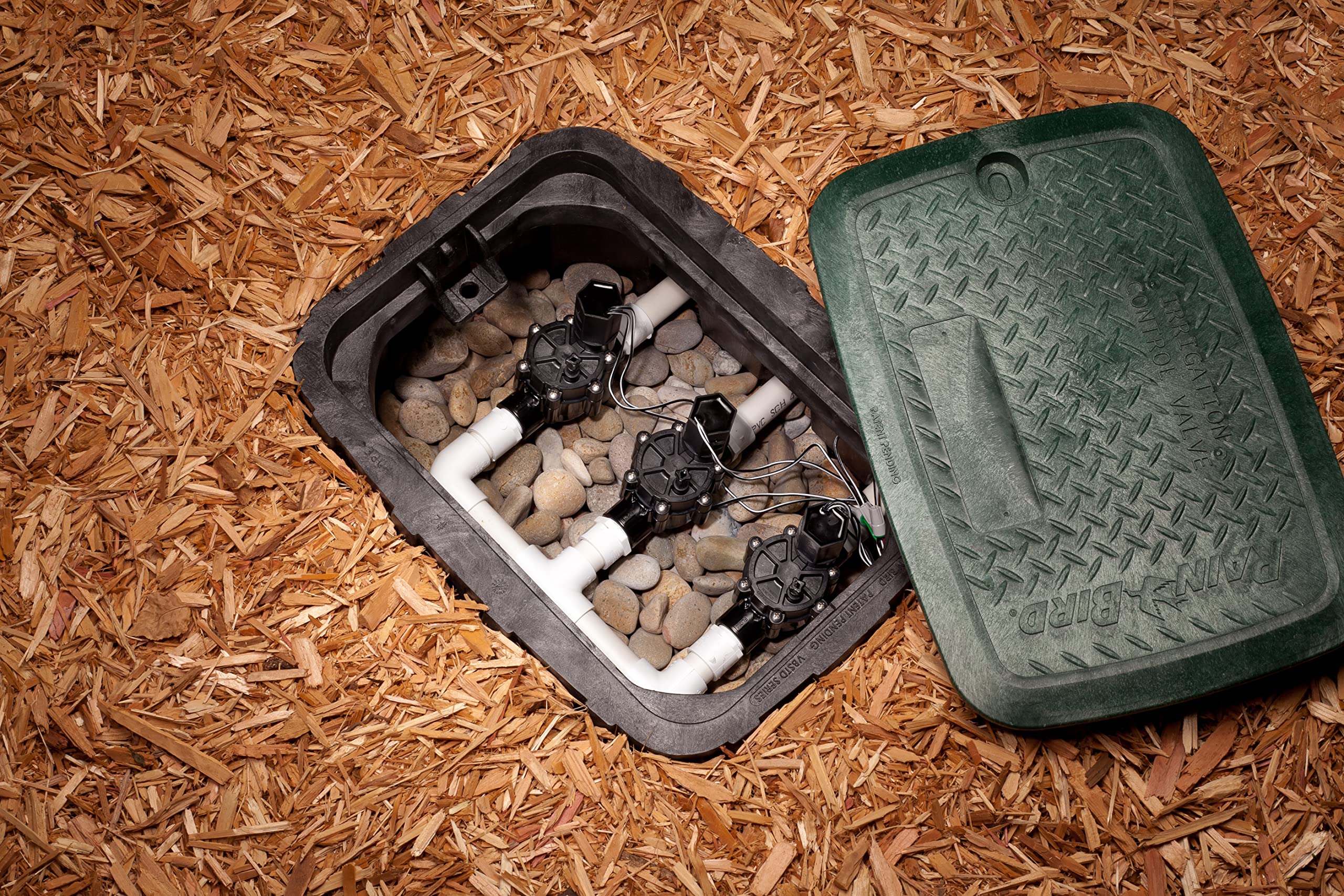

- Designed for below-ground installation, out of sight and away from playful hands.r
- Energy efficient, low power encapsulated solenoid with captured plunger.
- 1 inch female threaded inlet and outlet (use 1 inch MPT threaded pipe adapters with Teflon tape).
- Heavy duty construction.
Specifications:
- Brand Name: Rain Bird
- Product Type: Female In-Line Valve
- Inlet Size: 1 in.
- Maximum Pressure: 150 psi
- Voltage: 24 V
- Packaging Type: Boxed
- Material: Plastic
- Adjustable Flow Control: Yes
- Compatibility: Fits 1 in. FPT
