Description

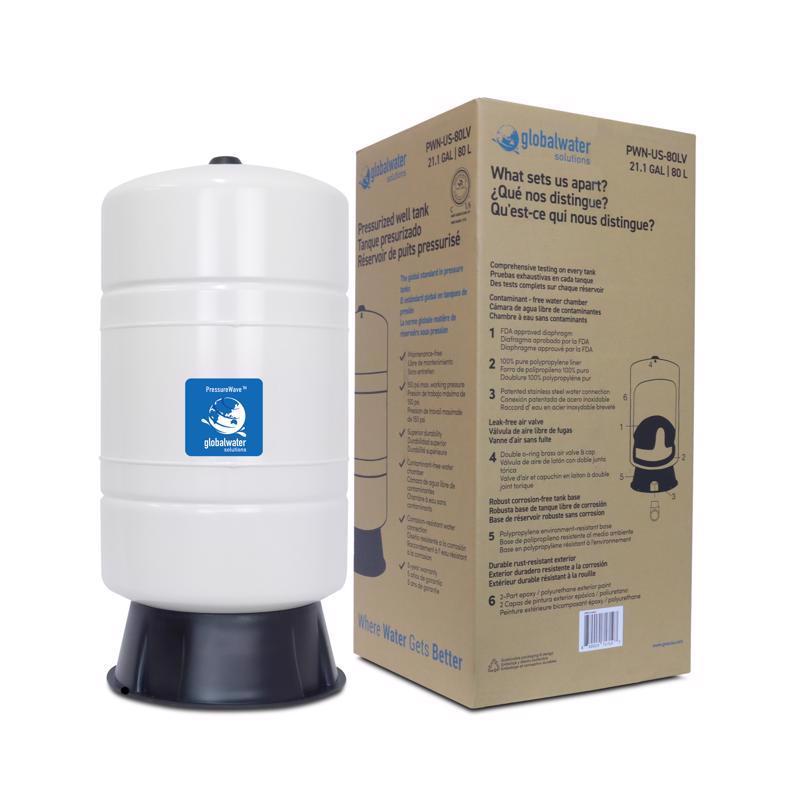

PressureWave tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting. The PressureWave Series is constructed of a virgin polypropylene liner combined with an FDA compliant high-grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded O-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless-steel water connection. The diaphragm and liner are both reinforced in specifi c wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak-free and maintenance-free pressure tank.
- Maintenance-free and Diaphragm design
- Replaceable tank base/tank feet/pump stand
- Dual layer polyurethane paint finish
- Leak-free, O-ring sealed air valve cap
Specifications:
- Brand Name: Global Water Solutions
- Sub Brand: PressureWave
- Capacity: 21.1 gal
- Product Type: Pre-Charged Vertical Pressure Well Tank
- Height: 32.08 in.
- Width: 15.3 in.
- Depth: 15.3 in.
- Color: Almond/Black
- Maximum Temperature: 194 °F
- Gender: Female
- UL Listed: No
- Packaging Type: Boxed
- Material: Steel
- Connection Type: NPT
- Connection Size: 1 in.
- Lining Material: Polypropylene
- Factory pre-charge: 1.9 bar / 28 psi
- Maximum working pressure: 10 bar / 150 psi
