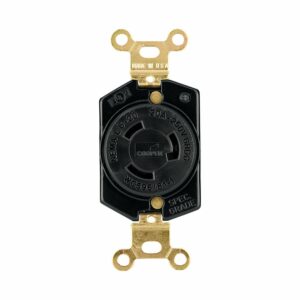

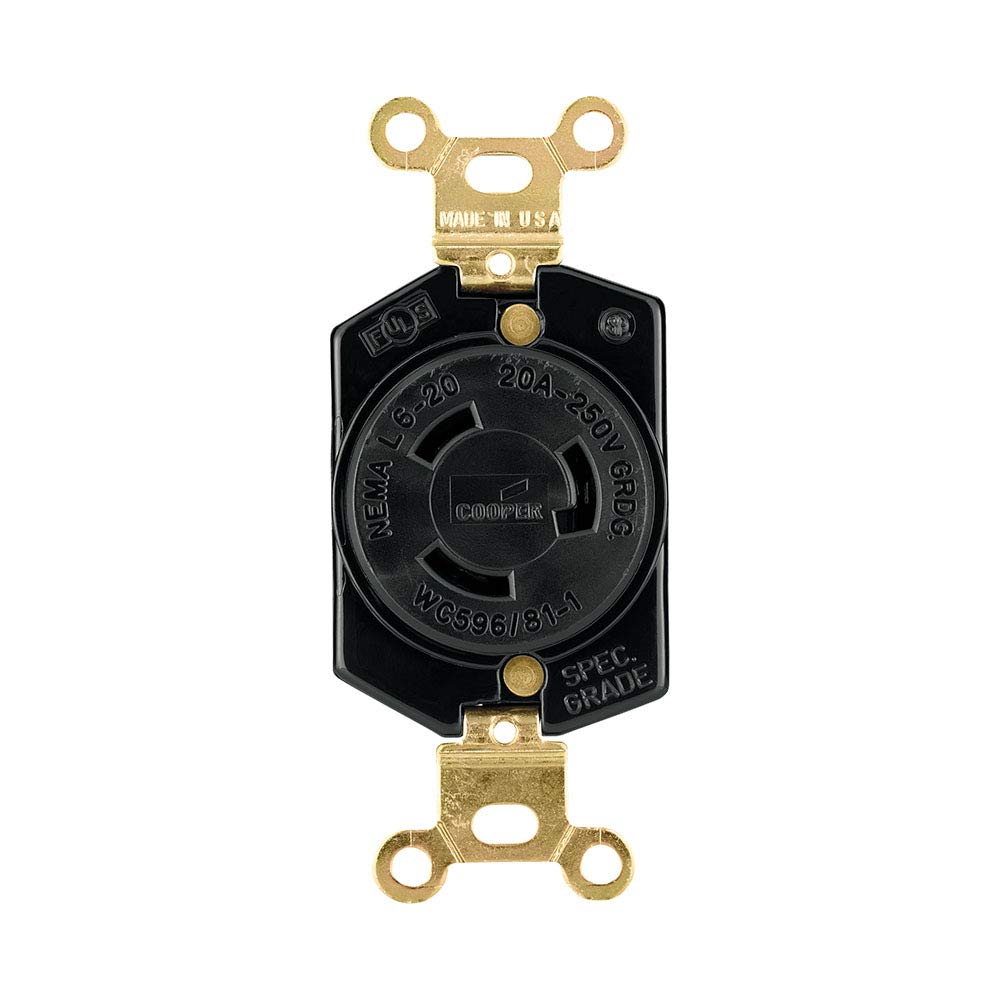

EATON L620R Lock Single Electrical Receptacle, 250 Vac, 20 A, 2 Pole, 3 Wire

Description

Hadlock electrical receptacle, ground lock, single, 2 poles, 3 wires, 18 – 14 AWG wire, 20 a, 250 vac, 1 phase, NEMA l6-20, 3.28 in overall length, 1.62 in overall width, 1.03 in overall depth, glass-filled nylon, Black, CSA certified, UL listed, back and side wire, for industrial applications. The Eaton L620R 20-Amp 250-volt hart-lock industrial grade receptacle with safety grip is designed and built with superior materials for long-lasting performance. It is used for 20-Amp 125-Volt with a NEMA l6-20r. NEMA provides a forum for the Standardization and testing of electrical equipment, enabling consumers to select from a range of safe, effective, and compatible Electronics. Its compact body design allows for adequate wire room in the wall box. Heavy interior walls provide additional support to ensure contact retention. It comes with a heavy duty mounting strap that is double riveted to the body for added strength. One piece brass contacts provide excellent plug retention and electrical continuity with minimum heat rise. It features multiple-head screws for flexibility in the installation and ease of use. It features serrated terminal plates and contoured terminal clamp “Bites” on the conductors for positive termination. Eaton is committed to providing products that increase productivity, energy efficiency, safety at work and in the home, and produce reliable performance. Whether a home-feet’s style is traditional, modern, casual, cozy or Rustic, it will demand more from wiring devices than in years past. Eaton is dedicated to providing the up-to-date wiring device solutions that today-feet’s homes need.
